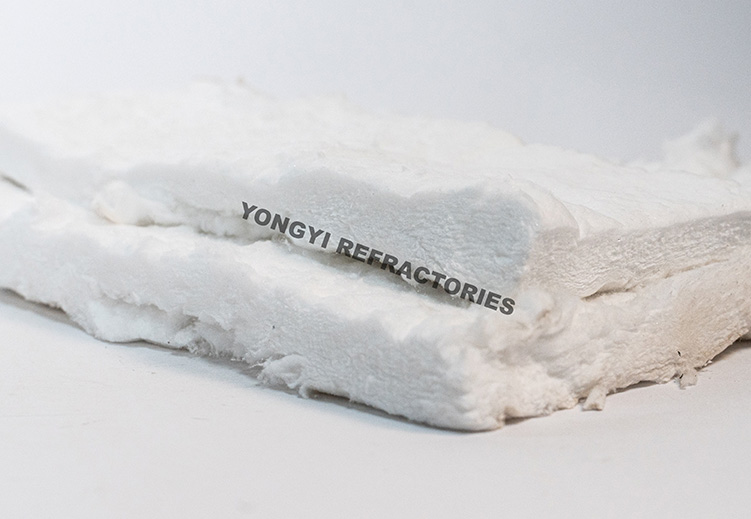

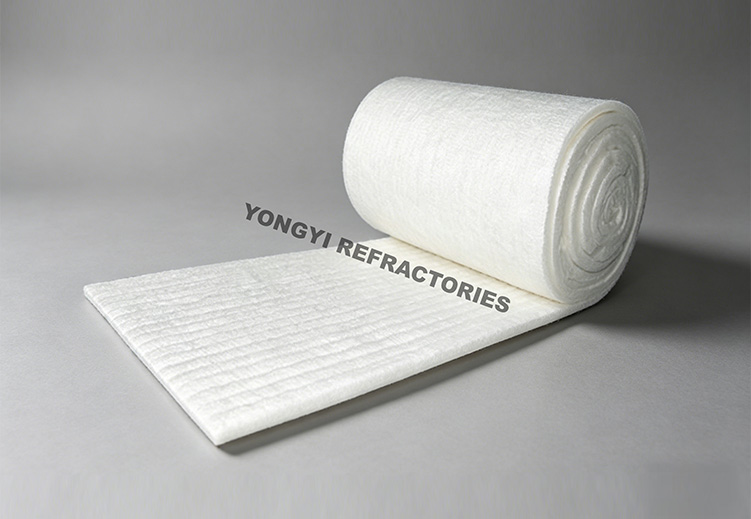

Ceramic Fiber Blanket

Ceramic fiber blanket is a lightweight fibrous refractory product integrating fire resistance, heat insulation, and thermal preservation. It contains no organic binders, possesses regular dimensions, and maintains excellent tensile strength, toughness, and fibrous structure under neutral and oxidizing atmospheres. Features include low heat capacity, low thermal conductivity, and excellent chemical/thermal stability without powdering within the operating temperature range. Ideal for industrial furnace linings, backings, high-temperature pipe insulation, door and roof sealing, and fire protection wrapping.

Send Message

Physical and Chemical Indicators

Item	1140	1260	1260 HP	1400 HA	1400 Zr
Linear Shrinkage (%)	950℃×24h ≤-3	1000℃×24h ≤-3	1100℃×24h ≤-3	1200℃×24h ≤-3	1350℃×24h ≤-3
Thermal Cond. W/(m·k)	≤0.153 (Avg. at 500℃)
Tensile Strength (25mm)	≥0.04MPa	≥0.05MPa	≥0.04MPa	≥0.06MPa	—
Al₂O₃ (%)	≥44	≥45	≥45	≥53	≥36
ZrO₂ (%)	—	—	—	—	≥15
Density（kg/m3）	64/96/128/160
Size（LWT）	3600/7200×610×20/30/50
Package	Woven plastic bags/Cardboard boxes

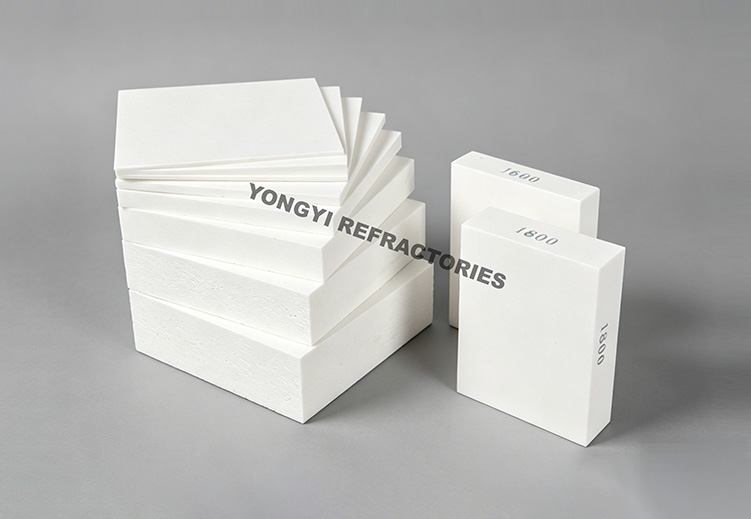

Ceramic Fiber Board

Produced via vacuum forming process from bulk ceramic fibers mixed with inorganic/organic binders and additives. Features a tough texture, high strength, and excellent resistance to airflow erosion with minimal shrinkage. It provides a rigid, self-supporting, and lightweight insulation solution for heating furnaces, kilns, and other thermal equipment.

Send Message

Physical and Chemical Indicators

Item	1050 STD	1260 STD	1260 HP	1400 HA	1400 Zr
Linear Shrinkage (%)	950℃×24h ≤-3	1000℃×24h ≤-3	1100℃×24h ≤-3	1200℃×24h ≤-3	1350℃×24h ≤-3
Density (kg/m³)	400	300	300	300	300
Size（LWT）	900×600×25/50
Package	Cardboard boxes

Ceramic Fiber Module

Ceramic fiber modules are made by pre-compressing ceramic fiber blankets using specialized equipment. After installation, the modules expand to create a tight, seamless furnace lining. They feature low heat storage, excellent energy efficiency, strong thermal shock resistance, and quick commission time after installation.

Send Message

Physical and Chemical Indicators

Item	1140	1260	1260HP	1400HA	1400Zr
Linear Shrinkage (%)	950℃×24h ≤ -3	1000℃×24h ≤ -3	1100℃×24h ≤ -3	1200℃×24h ≤ -3	1350℃×24h ≤ -3
Density（kg/m3）	220 kg/m³
Al₂O₃	≥44%	≥45%	≥45%	≥53%	≥36%
SiO₂	≥52%	≥52%	≥54%	≥46%	≥48%
ZrO₂	—	—	—	—	≥15%
Fe₂O₃	≤1.0%	≤0.8%	≤0.2%	≤0.2%	≤0.1%
Size	300×300×200 mm	300×300×200 mm	300×300×200 mm	300×300×250 mm	300×300×250 mm
Package	Cardboard boxes/Pallets

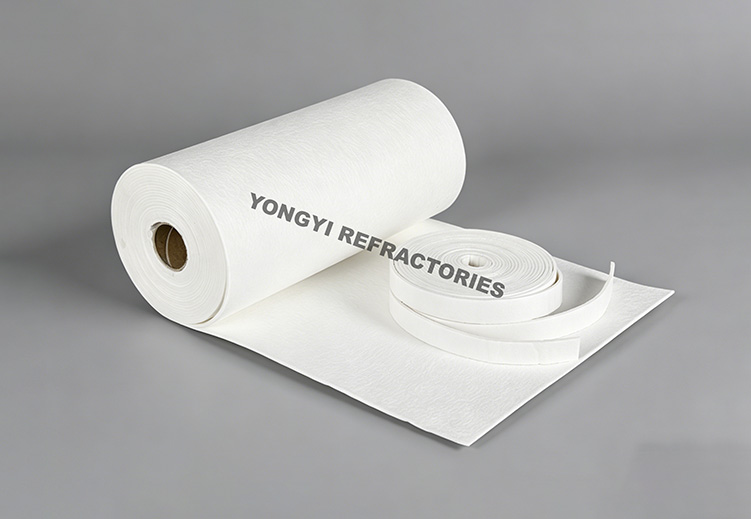

Ceramic Fiber Paper

Including soft, semi-rigid, isolation, and high-density grades, manufactured through a wet forming process. Features low heat capacity, low thermal conductivity, excellent electrical insulation, and superior machinability.

Send Message

Physical and Chemical Indicators

Item	Standard Soft Paper	Standard Semi-rigid Paper	Isolation Paper / Separator Paper	High Alumina Soft Paper	High Density Paper
Classification Temperature	1260℃	1260℃	1260℃	1400℃	1400℃
Organic Content	≤10%	≤12%	≤12%	≤8%	≤6%
Density	200kg/m³	200kg/m³	200kg/m³	240kg/m³	240kg/m³
Tensile Strength	≥0.4MPa	≥0.4MPa	≥0.4MPa	≥0.7MPa	≥0.7MPa
Moisture Content	≤1%	≤1%	≤1%	≤2%	≤2%
Size	40000/30000/20000×610×1/2/3 mm	50000×1220×1 mm	50000×1220×1 mm	40000/30000/20000×610×1/2/3 mm	20000×1220×2 mm
Package	Cardboard boxes

Related Products

$Refractory Mortars$

Refractory Mortars

Silica refractory mortars are widely used in high-temperature industrial equipment such as coke ovens, hot blast stoves, glass melting furnaces, and insulating silica bricks. They feature high refractoriness, high refractoriness under load, and reasonable bonding time.

Gunning Mixes

Semi-lightweight and lightweight spray coatings can be used as both heat-insulating linings and medium-low temperature working linings for thermal insulation. They feature convenient construction, high adhesion, low rebound rate, and low labor intensity.

$Refractory Precasting Products$

Refractory Precasting Products

Refractory precast shapes are molded products made from refractory castables, plastics, and other monolithic refractories. They are pre-manufactured into specific shapes, sizes, and performance requirements according to the equipment structure, operating temperature, and service conditions .

$Refractory Cements$

Refractory Cements

The CA50 series high alumina cement, including CA50-A600, CA50-A700, and CA50-A900, is primarily used in refractory castable systems, featuring rapid setting, high early strength, and good workability. The pure aluminate cement series, CA70 and CA80, are suitable for castable systems requiring higher purity, refractoriness, and high-temperature strength.

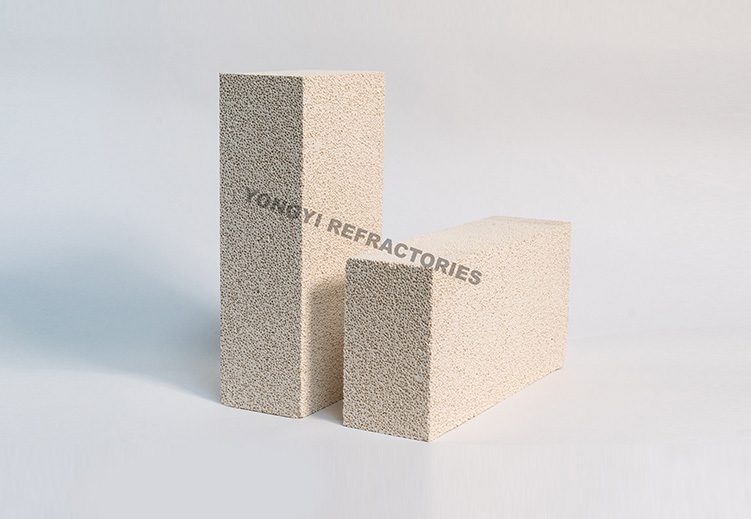

Insulating High Alumina Bricks

Lightweight high alumina bricks feature high service temperature, low impurity content, excellent refractoriness, and good thermal insulation performance.

Zirconia Bubble Bricks

Zirconia bubble bricks are ultra-high temperature insulating refractory materials made from zirconia hollow spheres as the primary raw material. They possess excellent high-temperature resistance, low thermal conductivity, and stable chemical properties.
