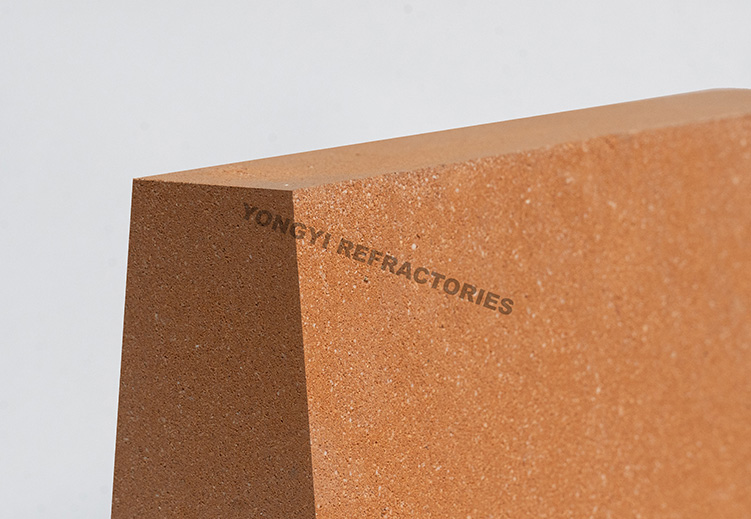

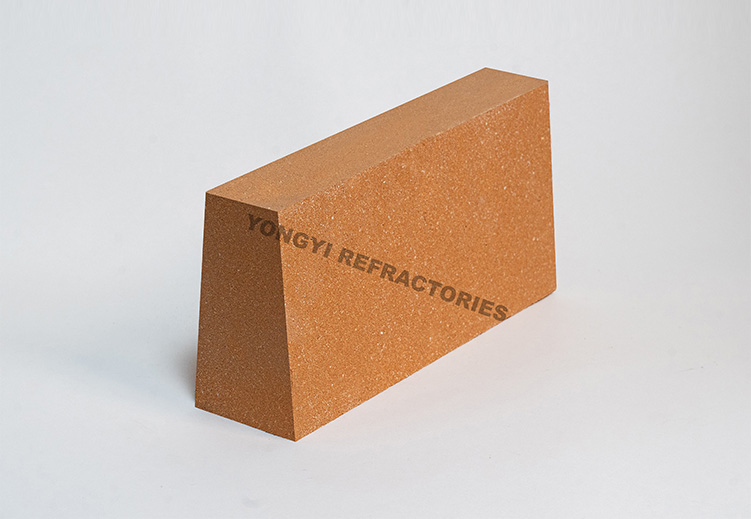

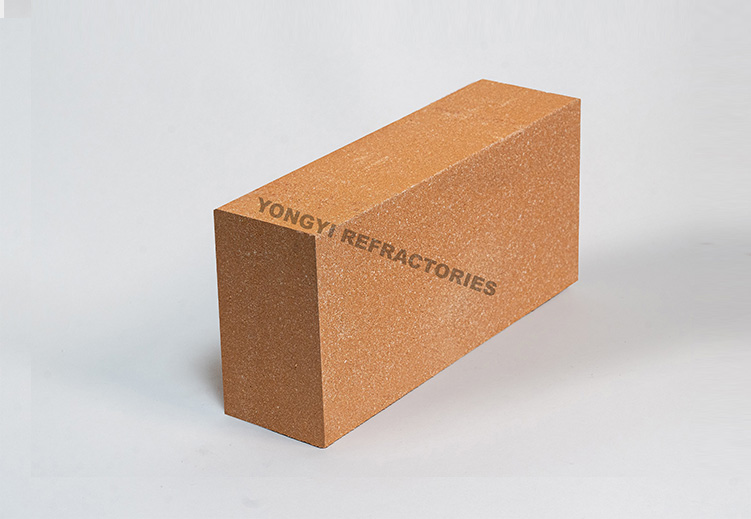

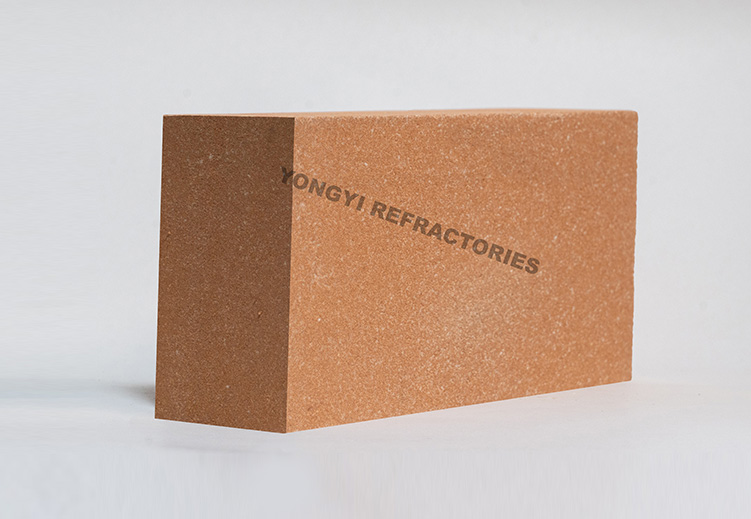

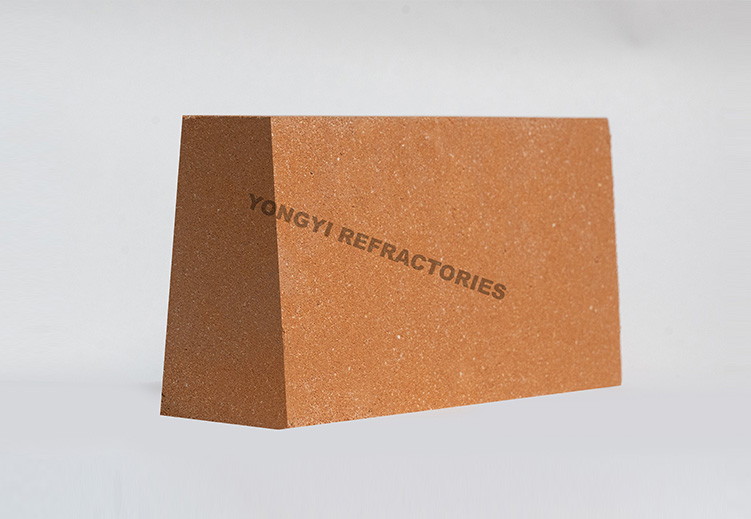

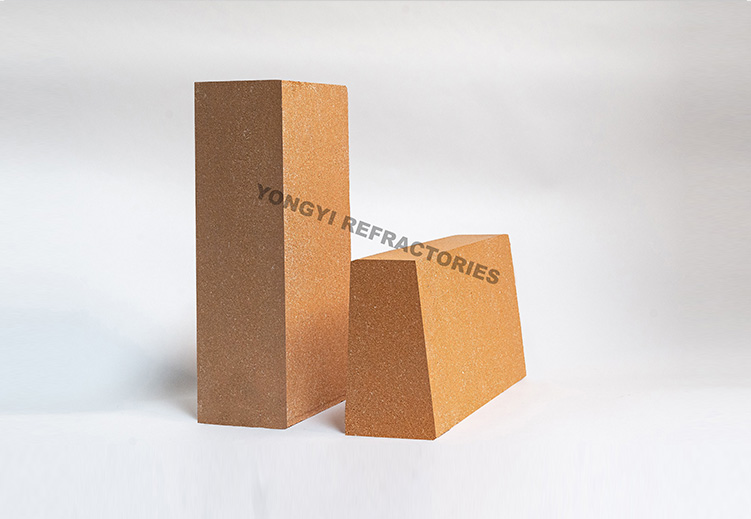

Lightweight Clay Bricks

Lightweight clay bricks feature high porosity, low bulk density, and low thermal conductivity. They are used as thermal insulation materials for industrial kilns to reduce heat loss and save energy.

Send Message

Physical and Chemical Indicators

Item	NG1.5	NG1.3	NG1.2	NG1.0	NG0.8	NG0.6	NG0.5
Bulk Density (g/cm³)	≤ 1.5	≤ 1.3	≤ 1.2	≤ 1.0	≤ 0.8	≤ 0.6	≤ 0.5
Cold Crushing Strength (MPa)	≥ 6	≥ 5	≥ 4.5	≥ 3.5	≥ 2.5	≥ 1.3	≥ 1.0
Permanent Linear Change (%) (-2 ~ 1)	1400℃×12h	1350℃×12h	1300℃×12h	1250℃×12h	1200℃×12h	1150℃×12h
Thermal Conductivity W/(m·K) 350±25℃	≤ 0.65	≤ 0.55	≤ 0.50	≤ 0.40	≤ 0.35	≤ 0.25	≤ 0.23

Related Products

$Refractory Castables$

Refractory Castables

Low and ultra-low cement castables feature small pore size, high density, good volume stability, high strength, and low water addition. They overcome the characteristic of significant strength reduction of ordinary castables at 800~1200℃; instead, their strength increases with rising temperature.

Acid-Resistant Bricks

Acid-resistant bricks possess excellent corrosion resistance to organic and inorganic acids (excluding hydrofluoric acid), along with good strength and wear resistance. They are widely used in acidic atmosphere flues, autoclaves and recovery boilers in the acid pulping industry, as well as large acid-resistant pool containers and storage tanks.

$Refractory Mortars$

Refractory Mortars

Silica refractory mortars are widely used in high-temperature industrial equipment such as coke ovens, hot blast stoves, glass melting furnaces, and insulating silica bricks. They feature high refractoriness, high refractoriness under load, and reasonable bonding time.

Gunning Mixes

Semi-lightweight and lightweight spray coatings can be used as both heat-insulating linings and medium-low temperature working linings for thermal insulation. They feature convenient construction, high adhesion, low rebound rate, and low labor intensity.

$Refractory Precasting Products$

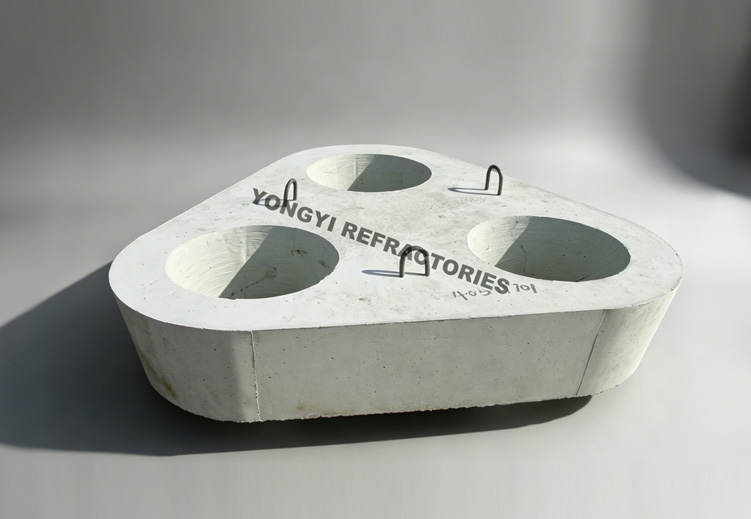

Refractory Precasting Products
